High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch

Name: High Temperature Resistant Antistatic Vibration Tuning Fork Water Level Switch
Brand: BAIRUI
Price: 1 USD

Buy cheap High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch product

Model Number : LS-500

Place of Origin : Guangdong, China

Brand Name : BAIRUI

MOQ : 2 pieces

Price : Negotiable

Mounting Type : Threaded installation

Description : ultrasonic sensor

Type : Ultrasonic Sensor

Usage : Liquid level measurement

Theory : Vibration occurs at the mechanical resonance frequ

Output : PNP/NPN

Amplifier Type : Standard

Voltage - Supply : 24v DC/220V AC

Detection Distance : 5000mm

Material : Stainless steel

Contact Now

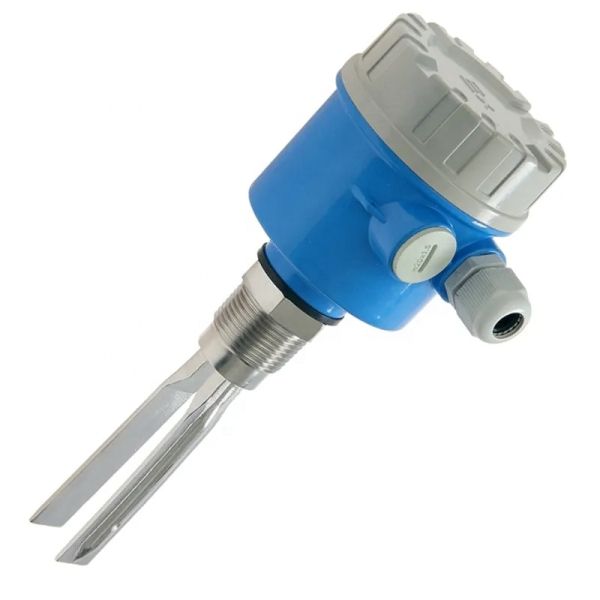

LS-500 High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch

The LS-500 tuning fork level switch is a simple, reliable and efficient point-type level control device. It determines whether the liquid level exists by detecting the changes in the vibration state of the fork teeth and is widely used in pump control, alarm and protection functions in various industrial processes. When making a choice, just ensure that its material and specifications match your process medium and conditions.

Technical Specifications

Power Supply	19…60VDC 19…250VAC 50/60Hz
Switching Time	In the medium 2 seconds, Empty: 3 seconds
Environment Temperature	-40…+70°C
Shelf Temperature	-40…+85°C
Medium Temperature	-40…+150°C
Working Pressure	-1…+40bar
Medium Type	Powder and particle ≤10mm,density>0.1g/cm³ Liquid,Viscosity ≤10000mm²/s, density >0.7g/cm³
Process Connection	M20×1.5,G1-1/2",customization
Electric Connection	M12×P1.0 Connector
Shell Material	SS304
Fork Material	SS304/SS316
Output	Relay, AC250V/4A, DC60V/4A NPN, 400mA PNP, 400mA
Power Consumption	DC<3W, AC <15W

Packing & Delivery

About Bairui Electric Technology Co., Ltd.

Bairui Electric Technology Co., Ltd. was established in January 2013. We are a professional company focused on sensor product research and development, design, production, and trade. With more than ten years of technology accumulation, we follow the business philosophy of technology first and service first, to provide customers with complete mature application solutions. The industries we serve include pharmaceutical, aerospace, chemical, electronics and other sectors. In foreign trade, we have rich experience in dealing with all aspects of international business. The company promises: "reasonable price, short production time, satisfactory after-sales service". We hope to cooperate with more customers for common development and mutual benefit. Potential buyers are welcome to contact us.
